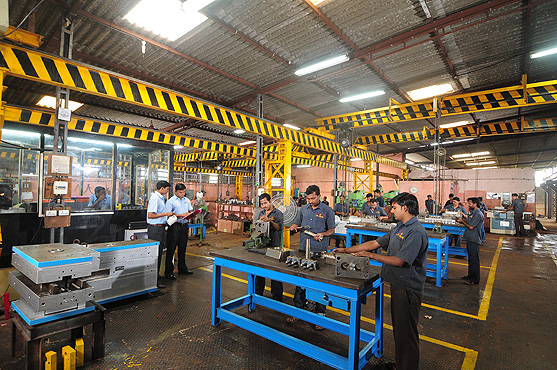

Assembly Section
During assembly, every mould component is fitted and aligned with micrometre-level accuracy. Our technicians ensure that cavities, cores, inserts, guide pillars, and bushes are perfectly positioned to maintain dimensional stability and smooth mould operation. This precise alignment reduces wear, minimizes friction, and ensures consistent part quality during full-scale production.
All critical systems—cooling channels, gating mechanisms, and ejection assemblies—are carefully installed and checked to guarantee seamless functionality. Proper integration of these systems ensures balanced cooling, smooth part release, and efficient material flow, helping improve cycle times and reduce moulding defects in production environments.
Once assembly is complete, the mould undergoes a series of functional checks to verify movement, sealing, fitment, and component interaction. This includes testing ejection stroke, slide mechanisms, locking systems, and cooling circuits. The validation ensures the mould operates flawlessly before entering the mould trial stage, reducing downtime and ensuring reliable performance from the first production run.
Assembled with Precision.
The assembly stage is where every precision-machined component comes together to form a fully functional mould. At Hitech Moulds, this process is carried out by skilled technicians who ensure perfect alignment, smooth movement of components, and accurate integration of all critical systems such as cooling, gating, and ejection.
Each mould undergoes detailed fitting, tolerance checks, and functional validation to confirm that every part operates as intended. By maintaining strict assembly procedures and in-process inspections, we deliver moulds that offer consistent performance, durability, and trouble-free operation during high-volume production.
